J&K and American Connector
is dedicated to serving the connector tooling needs of the

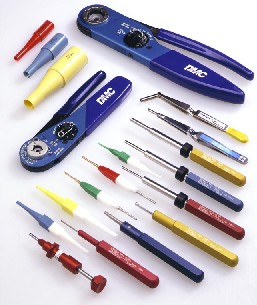

electronics industry. We, therefore, top off our product package with a
wide variety of installing, removal and crimping tools.
|
|
Installing
& Removal Tools
| MIL-I-81969/# |
SUPERCEDED
MILITARY # |
|
MIL-I-81969/# |
SUPERCEDED
MILITARY # |
| 1-01 |
MS3156-22 |
|
16-04 |
MS3160-22 |
| 1-02 |
MS3156-20 |
|
17-01 |
MS90455-16 |
| M24308/18-2 |
|
17-02 |
MS90455-12 |
| 1-03 |
MS3156-16 |
|
17-03 |
MS24256A20 |
| M24308/18-3 |
|
17-04 |
MS24256A16 |
| 1-04 |
M24308/18-1 |
|
17-05 |
MS24256A12 |
| 2-01 |
MS3323-22 |
|
17-06 |
MS90455-8 |
| 2-02 |
MS3323-20 |
|
17-07 |
MS90455-4 |
| 2-03 |
MS3323-16 |
|
17-08 |
MS90455-0 |
| 2-04 |
MS3233-12 |
|
18-01 |
MS17805 |
| 3-01 |
MS3344-23 |
|
19-01 |
MS90456-16 |
| 3-02 |
MS3344-20 |
|
19-02 |
MS90456-12 |
| 3-03 |
MS3344-16 |
|
19-03 |
MS90456-8 |
| 3-04 |
MS3344-12 |
|
19-04 |
MS90456-4 |
| 3-05 |
MS3442-23 |
|
19-05 |
MS90456-0 |
| 3-06 |
MS3342-20 |
|
19-07 |
MS24256R20 |
| 3-07 |
MS3342-16 |
|
19-08 |
MS24256R16 |
| 3-08 |
MS3342-12 |
|
19-09 |
MS24256R12 |
| 4-01 |
M55301/106-01 |
|
19-10 |
MS24256RH20 |
| 5-01 |
M55302/105-01 |
|
19-11 |
MS24256RH16 |
| 6-01 |
M21097/18-01 |
|
20-01 |
MS17806 |
| 7-01 |
M21097/12-01 |
|
27-01 |
MS90562-1 |
| 8-01 |
M55302/79-01 |
|
27-02 |
MS90562-2 |
| MS27495A22M |
|
27-03 |
MS90562-3 |
| 8-02 |
M55302/79-02 |
|
27-04 |
MS90562-4 |
| MS27495R22M |
|
27-05 |
MS90562-5 |
| 8-03 |
MS27495A22 |
|
27-06 |
MS90562-6 |
| 8-04 |
MS27495R22 |
|
28-01 |
MS3178-001 |
| 8-05 |
MS27495A20 |
|
28-02 |
MS3178-002 |
| 8-06 |
MS27495R20 |
|
29-01 |
MS3165-16 |
| 8-07 |
MS27495A16 |
|
29-02 |
MS3165-8 |
| 8-08 |
MS27495R16 |
|
M83723/32-08 |
| 8-09 |
MS27495A12 |
|
29-03 |
MS3165-4 |
| 8-10 |
MS27495R12 |
|
M83723/32-04 |
| 9-01 |
M55302/18-01 |
|
29-04 |
MS3165-0 |
| 10-01 |
M55302/86-01 |
|
M83723/32-00 |
| 11-01 |
M28731/22-01 |
|
30-01 |
MS3159-22 |
| 13-01 |
M28731/21-01 |
|
30-02 |
MS3159-20 |
| 14-01 |
MS27534/22D |
|
30-03 |
MS3159-16 |
| 14-02 |
MS27534-20 |
|
30-04 |
MS3159-12 |
| MS3447-20 |
|
30-05 |
MS3448-001A |
| M83723/31-20 |
|
30-06 |
MS3448-001B |
| 14-03 |
MS27534-16 |
|
30-07 |
MS3448-001C |
| MS3447-16 |
|
31-01 |
MS18137-20-1 |
| M8723/31-16 |
|
31-02 |
MS18137-20-2 |
| 14-04 |
MS27534-12 |
|
31-03 |
MS18137-20-3 |
| MS3447-12 |
|
31-04 |
MS18137-20-4 |
| M83723/31-12 |
|
31-05 |
MS14035-02 |
| 15-01 |
MS3483-1 |
|
31-06 |
MS14035-03 |
| 15-02 |
MS3483-2 |
|
31-07 |
MS14035-01 |
| 15-03 |
MS3483-3 |
|
31-08 |
MS14036-01 |
| 16-01 |
MS3160-20 |
|
31-09 |
MS10436-02 |
| 16-02 |
MS3160-16 |
|
31-10 |
MS14036-03 |
| 16-03 |
MS3160-12 |
Crimp
Tools
| MILITARY
P/N |
DESCRIPTION |
NSN |
| M22520/1-01 |
TOOL
FRAME |
5120-01-335-8571 |
| M22520/1-02 |
TURRET |
5120-01-335-8834 |
| M22520/1-03 |
TURRET |
5120-01-335-8835 |
| M22520/1-04 |
TURRET |
5120-01-335-8836 |
| M22520/1-05 |
UNIVERSAL
POSITIONER |
5120-01-335-8583 |
| M22520/1-06 |
POSITIONER |
5120-01-335-8584 |
| M22520/1-07 |
POSITIONER |
5120-01-335-8585 |
| M22520/1-08 |
TURRET |
5120-01-335-8837 |
| M22520/1-09 |
POSITIONER |
5120-01-335-8586 |
| M22520/1-10 |
POSITIONER |
5120-01-335-8587 |
| M22520/1-11 |
POSITIONER |
5120-01-335-8588 |
| M22520/1-12 |
TURRET |
5120-01-335-8838 |
| M22520/1-13 |
TURRET |
5120-01-335-8839 |
| M22520/1-14 |
TURRET |
5120-01-335-8840 |
| M22520/1-15 |
POSITIONER |
5120-01-335-8589 |
| M22520/1-16 |
POSITIONER |
5120-01-335-8590 |
| M22520/1-17 |
POSITIONER |
5120-01-335-8591 |
| M22520/3-1 |
GAGE |
5220-00-165-7604 |
| MILITARY
P/N |
DESCRIPTION |
NSN |
| M22520/2-01 |
TOOL
FRAME |
5120-01-335-8572 |
| M22520/2-02 |
POSITIONER |
5120-01-335-8592 |
| M22520/2-03 |
POSITIONER |
5120-01-335-8593 |
| M22520/2-04 |
POSITIONER |
5120-01-335-8594 |
| M22520/2-05 |
POSITIONER |
5120-01-335-8595 |
| M22520/2-06 |
POSITIONER |
5120-01-335-8624 |
| M22520/2-07 |
POSITIONER |
5120-01-335-8625 |
| M22520/2-08 |
POSITIONER |
5120-01-335-8626 |
| M22520/2-09 |
POSITIONER |
5120-01-335-8627 |
| M22520/2-10 |
POSITIONER |
5120-01-335-8628 |
| M22520/2-11 |
POSITIONER |
5120-01-335-8629 |
| M22520/2-12 |
POSITIONER |
5120-01-335-8630 |
| M22520/2-13 |
POSITIONER |
5120-01-335-8631 |
| M22520/2-14 |
POSITIONER |
5120-01-335-8632 |
| M22520/2-15 |
POSITIONER |
5120-01-335-8633 |
| M22520/2-16 |
POSITIONER |
5120-01-335-8634 |
| M22520/2-17 |
POSITIONER |
5120-01-335-8635 |
| M22520/2-18 |
POSITIONER |
5120-01-335-8636 |
| M22520/2-19 |
POSITIONER |
5120-01-335-8637 |
| M22520/2-20 |
POSITIONER |
5120-01-335-8638 |
| M22520/2-21 |
POSITIONER |
5120-01-335-8609 |
| M22520/2-22 |
POSITIONER |
5120-01-335-8610 |
| M22520/2-23 |
POSITIONER |
5120-01-335-8611 |
| M22520/2-24 |
POSITIONER |
5120-01-335-8612 |
| M22520/2-25 |
POSITIONER |
5120-01-335-8613 |
| M22520/2-26 |
POSITIONER |
5120-01-335-8614 |
| M22520/2-27 |
POSITIONER |
5120-01-335-8615 |
| M22520/2-28 |
POSITIONER |
5120-01-335-8616 |
| M22520/2-29 |
POSITIONER |
5120-01-335-8617 |
| M22520/2-30 |
POSITIONER |
5120-01-335-8618 |
| M22520/2-31 |
POSITIONER |
5120-01-335-8619 |
| M22520/2-32 |
POSITIONER |
5120-01-335-8620 |
| M22520/2-33 |
POSITIONER |
5120-01-335-8621 |
| M22520/2-34 |
POSITIONER |
5120-01-335-8622 |
| M22520/2-35 |
POSITIONER |
5120-01-335-8623 |
| M22520/2-36 |
POSITIONER |
5120-01-335-8596 |
| M22520/3-1 |
GAGE |
5220-00-165-7604 |
| MILITARY
P/N |
DESCRIPTION |
NSN |
| M22520/7-01 |
TOOL
FRAME |
5120-01-335-8573 |
| M22520/7-02 |
POSITIONER |
5120-01-335-8597 |
| M225207-03 |
POSITIONER |
5120-01-335-8598 |
| M22520/7-04 |
POSITIONER |
5120-01-335-8599 |
| M22520/7-05 |
POSITIONER |
5120-01-335-8600 |
| M22520/7-06 |
POSITIONER |
5120-01-335-8601 |
| M22520/7-07 |
POSITIONER |
5120-01-335-8602 |
| M225207-08 |
POSITIONER |
5120-01-335-8603 |
| M225207-09 |
POSITIONER |
5120-01-335-8604 |
| M225207-10 |
POSITIONER |
5120-01-335-8605 |
| M22520/7-11 |
POSITIONER |
5120-01-335-8606 |
| M22520/7-12 |
POSITIONER |
5120-01-335-8607 |
| M22520/7-13 |
POSITIONER |
5120-01-335-8608 |
| M22520/3-3 |
GAGE |
5120-00-338-0378 |
| MILITARY
P/N |
DESCRIPTION |
| M22520/34-01 |
BASIC
CRIMP TOOL |
| M22520/34-02 |
POSITIONER |
| M22520/35 |
GAGE |
| M81969/33-01 |
INST.
TOOL (STRAIGHT) |
| M81969/33-02 |
INST.
TOOL (OFFSET) |
| M81969/34-01 |
REMOVAL
TOOL |
The subject MS Part Numbers listed on this page are manufactured
by QPL Suppliers. J&K and American Connector is not currently a QPL Manufacturer of
these parts. | |
|
|
|
|
|
|
